Does Quartus Prime Pro 18.1 support State Machine viewer?

MamaSaru
Novice
1,035 Views

Is it hidden anywhere?​

0 Kudos
5 Replies
Vicky1
Employee
195 Views
Hi Masaru, Please check at, => 'Tool' -> 'Netlist Viewers' -> 'State Machine Viewer' please let me know if you have any different concern. Regards, Vikas
MamaSaru
Novice
195 Views

​Vikas,

I don't have that.

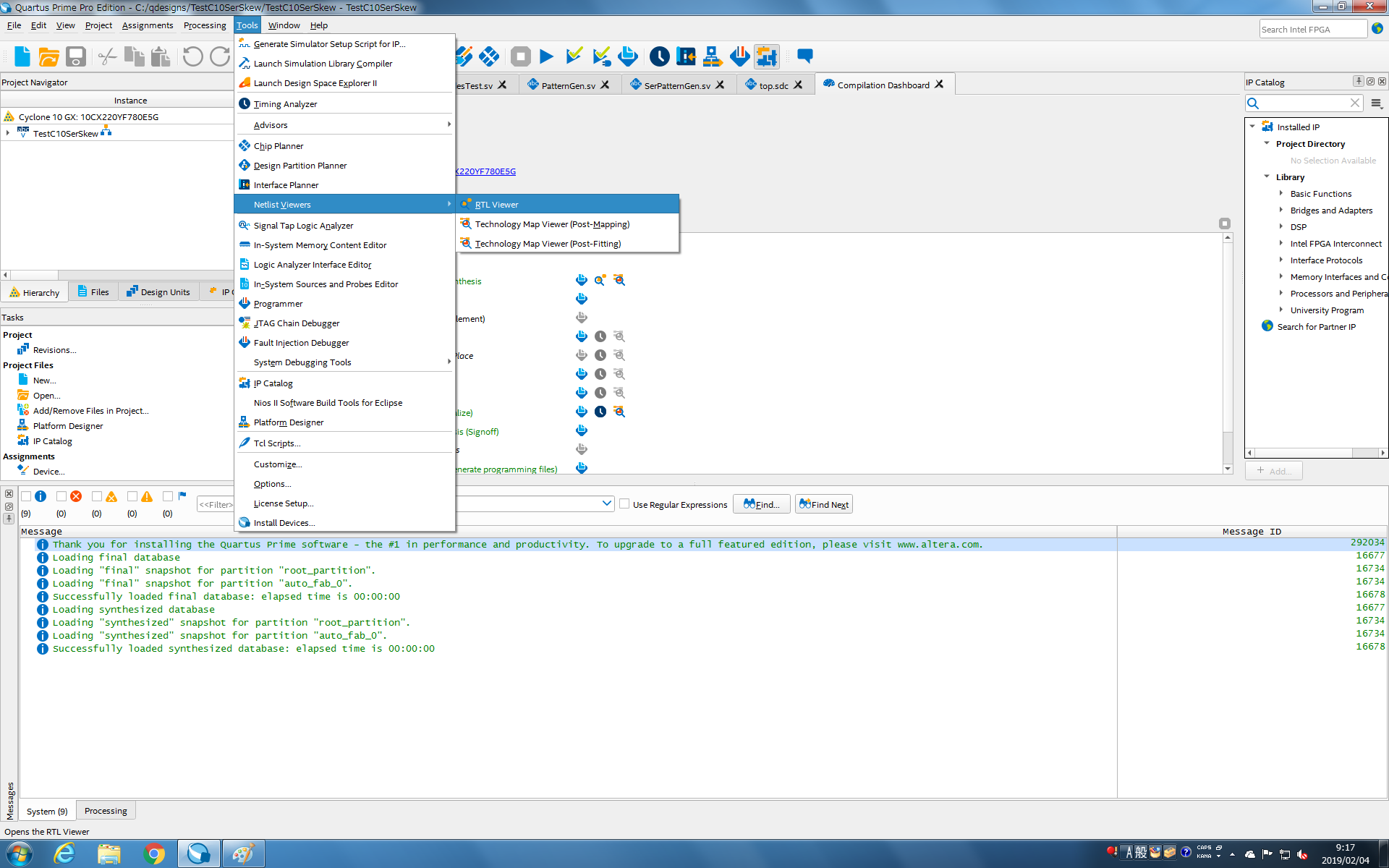

Please see attached.

Masaru

Vicky1
Employee
195 Views
Hi Masaru, I also realized the same behavior for Quartus Pro 18.1, It may not be available but State machine viewer is available in Quartus 18.1 std & lite edition. Regards, Vikas
MamaSaru
Novice
195 Views

Is there any graphical documentation support for state machine?

It was convenient.

I request state machine viewer to come back.

Vicky1
Employee
195 Views
Hi Masaru, Apologies for the inconvenience but I couldn`t reach to any specific document. Once I got update, I will late you know. Regards, Vikas
