Pin1 Quadrant WGI210IT S LJXS

[Dornbusch]

I know, that I am not the first who asked that, but I was not able to get an answer yet.

I am looking for a document, where the tape and pin 1 orientation of Ethernet controller WGI210 is described. It should be a tape and reel specification of used package QFN64.

Probably this controller does have only one orientation, but even this is not documented.

Thank you

[Dineshbabu]

Hi Dornbusch,

Greetings!

Thank you for contacting Intel Customer Support. We acknowledge receipt of your concern and want to assure you that assisting you is our top priority.

Please allow us some time to review the details and we will get back with an update shortly.

Regards,

Dinesh

Intel Customer Support Technician

[Fikri_Intel]

Hi Dornbusch,

Good day to you.

Please be informed that we have sent you an email with the requested design.

Kindly let us know if you have any further concerns.

Looking forward to your response.

Regards

Fikri_Intel

[Dornbusch]

Hi Fikri,

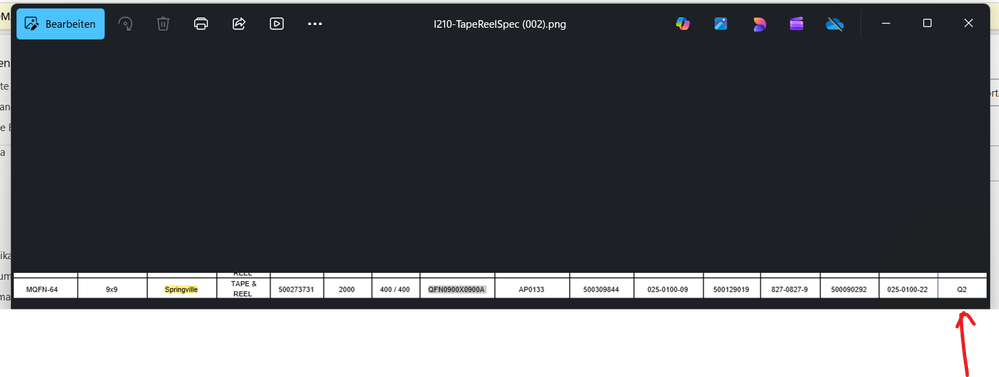

thank a lot. Could you please pass a screenshot of the png you sent. Almost right there is written "Q2". This could be the information I am looking for. But I need to see the headline. Many thanks. Ingo Dornbusch

[Sachinks]

Hi Dornbusch,

Thank you for your reply. Just for confirmation, are you looking for the headline of the document from which the png image file was shared?

Regards,

Sachin KS

Intel Customer Support Technician

[Dornbusch]

yes, please.

I attached a screenshot.

Ingo

[Dineshbabu]

Hi Dornbusch,

Thank you for your response. Please allow us some time to review the details and we will get back with an update shortly.

Regards,

Dinesh

Intel Customer Support Technician.

[Dineshbabu]

Hi Dornbusch,

Greetings!

Thank you for your patience. The Q2 in the screenshot is just the antistatic cover tape design approved date (04/27/04) which was in AP0133.pdf.

Regards,

Dinesh

Intel Customer Support Technician

[Dornbusch]

Thanks a lot for your reply Dinesh. I am sad to say, that your answer is putting me back to start. So within the files provided to me, there is no indication for the orientation of the component. I do not wonder about ist, since those information normally is given by component specification and not within packing specification.

Kind Regards

Ingo

[Dornbusch]

Dear Dear,  I attach the Data Sheet of TI TLV759 as a example how it is handled normally.

Please refer to page 26.

Kind Regards

Ingo

[Poojitha]

Hi Dornbusch,

Greetings for the day!

Thank you for sharing the details. We kindly request you to allow us some time to check the details and provide you with an update.

Best regards,

Poojitha N

Intel Customer Support Technician
