200/300/400/500/600/700 series chipset Power Management Timing Diagrams

[latinphoenix]

Hello!

200/300/400/500/600/700 series chipset Power Management Timing Diagrams

please, where can I download them?

I've been searching for them, but I couldn't found them in the official White Paper on chipsets (official website of intel)

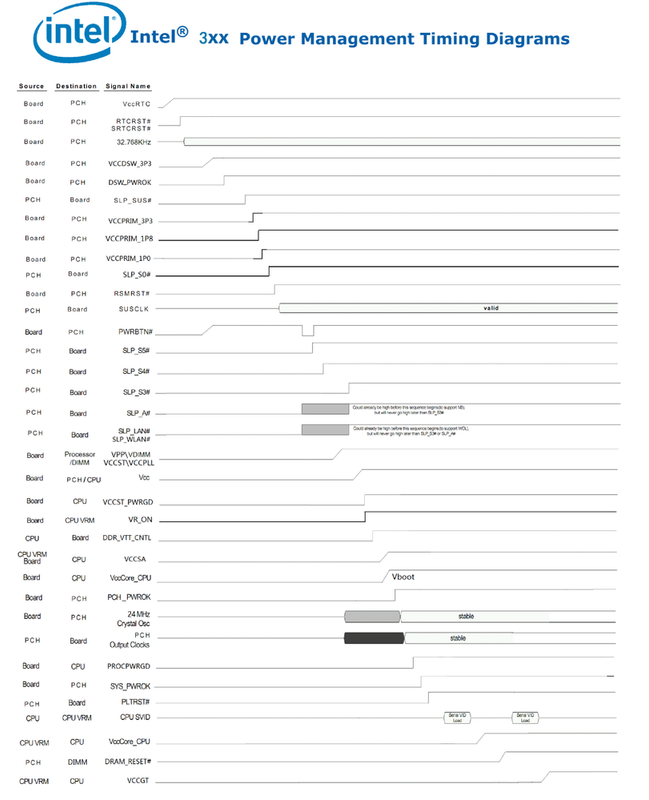

As the pictures below

I'll appreciate your help

[JeanetteC_Intel]

Hello latinphoenix,

Thank you for posting in Intel Communities.

Based on your post, it is best to coordinate this with our team for further checking. Before I do so, please let us know how are you going to make sure of the information you need.

I will wait for your reply.

Best regards,

JeanetteC.

Intel® Customer Support Technician

[latinphoenix]

 I'll be waiting for the documentation I asked  above.

 The information  will be for personal use only

Thank you..

[JeanetteC_Intel]

Hello latinphoenix,

I apologize for the typo in my previous message. I'll check on this request and will post an update once it's available.

Best regards,

JeanetteC.

Intel® Customer Support Technician

[JeanetteC_Intel]

Hello latinphoenix,

Good day.

I am still working on your request, however, I need to clarify the following information so we can proceed with it:

1. Can you provide what you are planning to do with the Power Management Timing Diagrams?
2. Can you share the specific document name where you obtained the photos?

I hope to hear from you soon, so I can proceed with your request.

Best regards,

JeanetteC.

Intel® Customer Support Technician

[latinphoenix]

Hello, JeanetteC_Intel

1) It's just for studying these  POWER MANAGEMENT TIMINGS during "power on sequence ".

2)

a) the picture I found on this forums) when I was searching for documents related to  power management timing diagramas for 200/300/... 700 series chipset

b) the other documents (9-series-chipset-pch-datasheet, 8-series-chipset-pch-datasheet, 7-series-chipset-pch-datasheet), I downloaded from  https://www.intel.com/

links:

https://www.intel.com/content/dam/www/public/us/en/documents/datasheets/9-series-chipset-pch-datasheet.pdf

https://www.intel.com/content/dam/www/public/us/en/documents/datasheets/8-series-chipset-pch-datasheet.pdf

If you like, you could send the documents via e-mail, and I won't share them with anyone else, as I said above, it's for my personal use, for my own study!

Thanks

Regards!

[JeanetteC_Intel]

Hello latinphoenix,

Were you able to check the previous post?

Let us know if you have any questions.

Best regards,

JeanetteC.

Intel® Customer Support Technician

[latinphoenix]

Hello,

Well, I've already replied to your last message above.

I'll be waiting for the e-mails

Bye

[JeanetteC_Intel]

Hello latinphoenix,

Good day.

You may actually download the link and save it. But since you prefer to have it sent via email, please check your email inbox, spam, or junk folders, for the documentation you've requested.

I hope it helps.

Best regards,

JeanetteC.

Intel Customer Support Technician

[JeanetteC_Intel]

Hello latinphoenix,

Good day.

I'm following up to check whether you have had the chance to check your email for the requested documents/datasheet. If you have, kindly acknowledge receipt and do not hesitate to reach out if there are any aspects you'd like to discuss or require further explanation on.

I hope to hear from you soon.

Best regards,

JeanetteC.

Intel® Customer Support Technician

[JeanetteC_Intel]

Hello latinphoenix,

Greetings.

I hope to know if the documentation I shared is the one that you are looking for. Since I have not heard from you for the past few days, so I will proceed in closing this thread.

Should you need assistance in the future, please submit a new question as this thread will no longer be monitored.

Sincerely,

JeanetteC.

Intel® Customer Support Technician

[latinphoenix]

Hello

No,  you have only sent documentation about 8 series chipset and 9 series chipset ( Power Management Timing Diagrams). However, these ones are on the Intel website, and I had downloaded before as I said above.

I asked you for 200-300- 400- 500- 600- 700 series chipset Power Management Timing Diagrams

thanks for the help!

[Adão]

Power Management Timing Diagrams 100, 200?
