Unity Tip: Understanding Rotational "Snapping" With TrackingAction

Hi everyone,

If you use the TrackingAction RealSense script in Unity to power the rotation of objects then you may notice that the object will sometimes jump out of the desired position.  This occurs particularly when the camera gains and loses tracking of the hand or face.  In the case of using RealSense with avatar  bodies, it can mean that a character's arm leaps sideways or one eyelid half-closes whilst the other remains open.

My company has been researching and experimenting with this problem for over a year and found that there is little that can be done with constraints, rules or custom scripting to minimize the snapping.  Even if you manage to deactivate the TrackingAction at the instant that a snap is about to occur to prevent the object from mis-rotating, the TrackingAction initiates the delayed snap-movement as soon as it is switched on again and re-acquires tracking.

This is because it reads the current position of the hand or face landmark that a particular TrackingAction is set to and then pulls the rotation angle of the object towards that landmark.  So if you switch off the TrackingAction when your hand is at the side of your body, move your hand towards the center of your chest and switch the TrackingAction back on again, the object will flip sidewards towards the chest where your hand currently is.

Another phenomenon that we had observed was that if the Virtual World box values of a TrackingAction that is configured for rotation are set to '0' then they are automatically changed to '1' as soon as tracking is acquired.


If you are wondering why we were using '0' for our rotational Virtual World Box values instead of the default '100': it is because having a Virtual World Box with perfectly spherical objects (like the limb joints in our avatar) seems to achieve nothing at all except generate unsightly giant red boxes in the editor.  We speculate that this is because a sperical object spins on the spot and so can never touch the sides of the box, and that the Virtual World Box would work best with irregularly shaped objects that can make contact with the Bos's boundaries when rotated and have their movement blocked.

Anyway ... since we had observed that a "snap" in the settings of the TrackingAction when the program is running - such as the loss and re-gaining of tracking - can pull an object away from where you want it to be, we speculated that something similar might be happening with the automatic change of our Virtual World Box value from '0' to '1' at program start-up.

It was possible that the change in VBW values caused a change in the rotational joints at the very start of the program that it could not recover from, making the controls prone to going wrong.  We therefore decided that the best way to avoid this start-up snap might be to simply set the VWB values of every single one of our rotational TrackingActions - both hand and face ones' - to the '1' value by default so that they did not have to be altered by the TrackingAction when tracking was acquired.


When we performed testing of the avatar with the new '1' setting, we found that the smoothness of the joint rotations had increased considerably, with much less jolting during movement and easier achieving of more difficult actions such as lifting the avatar arms above its head.  It wasn't a perfect cure, since the TrackingAction still has other issues to be dealt with, such as producing unwanted direction changes when the wrist is turned slightly, even if the joint is not set to track the wrist joint.  But eliminating the automatic updating of the RWB value had certainly improved the controls of our avatar.


Another way you can precisely customize your Virtual World Box settings is in the 'Center Reference' menu.  By default it is set to 'Self.'  This means that the TrackingAction automatically generates values that will move the center-point of your Virtual World Box away from the absolute center of your object.  Sometimes the values are too tiny to make much of a difference, and sometimes they are as large as '10' or '-10', which can cause a noticable offset in the box's boundaries.

You can avoid this auto-generation of the Center values by choosing the 'Custom' option from the 'Center Reference' menu and then setting all of the Center values manually to '0.'  When your program is run, your Virtual World Box will remain perfectly on-center no matter what.



Once you understand how the TrackingAction script can change the rotation angles of your object based on factors such as jumping to a landmark's new position after tracking is acquired or how much you are unconsciously turning your hands sidewards when using your hands to control an object, it makes it easier to design counter-measures for these unwanted angle changes to produce smoother animation and more refined control.

Best of luck!  If you have questions, feel free to ask them in the comments below.






0 Kudos
33 Replies
Honored Contributor III

Unity supports development on all popular types of mobile.

I believe that you build your mobile project in Unity as normal but go to File > Build Settings and set your project to export as a mobile application instead of computer.

Pricing for Unity on mobile is a bit confusing.  The Pro versions of mobile support cost $1500 or $75 a month, but Unity said that they made mobile development free for small independent developers a couple of years ago.  It is possible that the situation is like that of the Personal and Pro editions of Unity 5 for computers ... you can use Unity for free but get extra features with the paid Pro version.

Even if you are able to develop a mobile application on Unity, you will still need to purchase a developer licence from Google or Apple to put your app on the Google Play Store or iOS App Store.  I think the licence is typically about a $25 one-off fee for Android and $99 a year for iOS.




Why is my model hand in a state of ladder? Not flat? How to solve it? Thank you

Honored Contributor III

I was not sure what you meant, but I am guessing that if your model hand is not flat then you have a problem with how the pieces of your hand are linked together, if you have built your model hand in Unity.

Your TrackingAction controlled finger joints and the pieces of finger flesh have to be linked together as children in one long unbroken line from the start of the finger to the tip of it.  If they are not linked like this then your hand will not be flat, because the start, middle and end sections of the finger will all rotate independently.  What should happen if the sections are all child linked together should be that when the start section of the finger rotates, it moves the middle section.  And as the middle section rotates, the fingertip section should be rotated.

This makes the fingers bend over smoothly when closing the hand and become straight and flat again when opening the hand.

This old article on my website from last year shows in pictures how to make an arm and hand in Unity and link the pieces together.

If I did not understand the meaning of your problem correctly, please correct me and I will try to help some more.  Good luck!










Depending on your let see, I solved my fingers stepped issue, really thank you for, I would like to ask a question, the problem is rotating fingers, my fingers always turn a mess, you give me a Profile for me to learn about it? thank you for your help!

Honored Contributor III

I used to get broken fingers too.  I found that the best thing to do was to use the JT1 joint for all rotational joints in each finger.  So:

Set all Index finger joints to Joint Index JT1.

Set all Middle finger joints to Joint Middle JT1.

Set all Ring finger joints to Joint Ring JT1.

Set all Pinky finger joints to Joint Pinky JT1.

There are two reasons for using JT1.

(a) It is one of the easiest finger joints for the camera to see when you are holding your hand up to it.  This will make rotation smoother and more reliable.

(b) If you have all joints in a finger set to track the same joint on the real hand then it means that all the joints will rotate by the same amount, so the flesh pieces will be less likely to look broken.

Here is an image of the structure of the middle finger of my avatar, and its TrackingAction settings.


The child linking of my finger pieces are in this order.

Base joint (the knuckle bone behind the finger on the real life hand).  The base joint (which is shown by the coloured box on the picture) is actually buried inside the hand, just like the real life knuckle.

Base flesh (the first section of the finger, which does not rotate much)

Joint 1 (the joint in the middle of the finger on the real hand)

Middle finger flesh (the section of flesh just before the fingertip)

Fingertip joint (the bone just before the end of the finger)

Fingertip flesh (the flesh at the end of the finger).

My avatar hand has a claw on the end because it is a squirrel, but your one does not have to have that!

If your child linking of the pieces is correct then in the Hierarchy panel listing of your objects, they should descend diagonally like a set of stairs.

To avoid broken fingers, you can also try constraining every rotational direction except the one that makes the finger flesh rotate up and down.  In my TrackingAction constraints, it is the X direction that my fingers rotate up and down in and so I have that axis unlocked.  It may be a different axis in your project.  Experiment to find out which direction makes the fingers rotate up and down, and lock the other directions in the constraints.

There is one exception to this.  If you want the fingers to be able to move sideways too so that they can press together and then move apart again, you will need to have two axis open (for example, X and Y) in the Base joint only.  You only need  2 axis open in the Base joint for sideways movement because if your finger pieces are linked together correctly, when the Base joint rotates sideways, it will move the rest of the finger with it.

Edit: I just remembered another piece of advice.  You do not need to have a collider field in your rotation joint.  This is because the joint will never have to make contact with other objects, because that is what the flesh pieces are for.  If your joints have no colliders then the fingers are likely to bend better because they will not be rubbing against the colliders of the flesh pieces and being disrupted..













底座接頭(在現實生活中的手的手指背後的關節骨)。 (其通過彩色盒上的圖片)的底縫實際上是埋在手裡面,就像現實生活中的關節。











thank you for your help! Thank you,myemail,
Please stay at your facebook or mailbox, to facilitate contact you Thanks
Honored Contributor III

It's not a good idea to give out your email address on a web forum, as internet spy robots can read it and use it to send you junk mail!  It's probably better to send me a private message on this forum with the 'Send author a message' link.

If you want to remove your own email address from your comment, you can do this by clicking the Edit link on the comment.


thank you!!!!!!!!!


You can send it to my mailbox? So that I contact you, thank you. . . .

Honored Contributor III

Any private messages that you send me from this forum are sent to my email and I will see them quickly.  It is therefore like sending me an email.

Regarding your problems ... when you say that your hands are upturned, do you mean that your fingers are rotating in the wrong direction?  I had that problem too.  To fix it, you just need to set an "invert" on the direction axis that rotates your fingers so that they rotate in the opposite direction.


Strangely, I have found that some of the finger joints need inverts, whilst some of them do not.  The best approach is therefore to apply inverts to one joint at a time instead of all of them.  If the finger section rotates the correct way, keep the invert.  If it goes the wrong way, remove the invert.  Eventually you should hopefully have all of your finger sections rotating in the correct direction.

Another factor that can affect whether the finger joints are rotating in the correct direction is the angle values of the joints in the Transform settings at the very top of your Inspector panel.  All of your joints should have the same angles (for example in my joints, the angle of every joint is X = 0, Y = 0, Z = 270).


The 270 is not particularly relevant.  It just happens to be the angle that I chose when creating the joints.  The angle of the fingers was determined by the angle at which I put the flesh pieces attached to the joints.  What is important is that whatever angle values you choose, all of your joints should have the same ones.

If you have made a mistake in the joint angles and have already finished your finger, it can usually be hard to fix, because changing a joint angle can distort the rest of the finger sections that come after that joint (because they are child linked together).  There is an easy and quick tip for editing joints without breaking the rest of the finger though.

1.  Right click on the object directly below the joint that you want to edit and select Copy.  This will take a copy of all the child linked finger parts below that joint.


2.  Right-click on that object again and select Delete this time, to cut off all finger objects below the joint.


5.  Select the joint object and edit its angles in the Transform section of the Inspector panel.


6.  Once you have finished editing, right click on the joint object and select Paste.  This will paste the deleted finger sections back onto the hand, with the angles of the flesh and joints unchanged.


Although the finger sections are pasted back on, they are no longer child linked to the joint.  To fix this, simply hold the left mouse button down on the object directly below the joint in the Hierarchy object listings panel and then drag it onto the joint and release the left mouse button to drop the section onto the joint and attach it again.


When you check the angles of the pieces you have pasted back on, you may find that they have changed.  For example, if your angle was '270' then it might now say -90'.  Don't worry - the minus value is just another way of writing it, and it is still the same angle.  For example, -90 = 270, and -180 = 0.  The important thing is that your finger sections rotate in the correct direction when you run the program!


Moving on to talking about the thumbs ... the thumbs are the most difficult section of the hand to model, because they can move in complex ways, in both the up-down and left-right directions.

Because the thumb is shorter than the finger, its physical structure is simpler as the tip of it does not bend over like the fingertips do.  I therefore dropped the fingertip rotation joint and just had a base and middle joint.


Although the thumb points in a different direction, the angle values used for the thumb joints was still 0, 0, 270.


The direction of the thumb is primarily set by the direction that the flesh sections are pointing in.

In regard to the TrackingAction settings for the thumb, it can move in any direction - up / down, left / right and diagonally.  It therefore made total sense to configure the constraints of the TrackingAction to only constrain the Positions, and have all of the Rotation constraints unticked to unlock them so that the thumb joints are free to rotate in any direction.


If you find that the thumb is rotating in the wrong direction, experiment with applying inverts to one or both of the joints until it is moving correctly. In the case of my hand in particular, the correct invert settings found through trial and error were to have X and Y inverted and Z not inverted.


With these constraint settings, the thumb was able to move just like a real human thumb, raised up in a thumbs-up gesture or drawn into the palm.




Speaking of extremely fine, sincere thanks to you, I will be your religion to debug, thank you again for, I have a problem directly to the forums.

Honored Contributor III

Thank you very much, Wang and Ahmed.  You're very welcome.  :)


I would like to ask you how to accurately distinguish right hand, I have one for eachfinger joint added TrackingAction, and choose about, but he is very unstable, and thishow to solve it. Thank you
Honored Contributor III

Yes, the camera sometimes has more difficulty dealing with two handed control than it does with one-handed control.  This is because the left and right hands fight about which one should be active.  So if one hand is nearer to the camera than the other, the object that is controlled by the nearest hand is moved whilst the object controlled by the other hand stops moving, because the tracking of that hand's movement stops.

There are some ways in which you can make two handed control more stable though.


On the objects that use a TrackingAction with an Index value of 0, place a tick mark in the Continuous box.  This box makes tracking of the Index 0 objects more stable, because it tells the camera to focus on tracking the Index 0 hand even if the Index 1 hand appears in the camera's view.  Movement of the Index 0 hand will therefore not stall because of the camera getting confused about whether Index 0 or Index 1 should be active.


You should not though tick the Continuous box in the TrackingActions that use Index 1.  This is because if you do this, the Index 1 object tends to ignore what the Index 1 hand (the second hand) is doing and instead follows the movements of the Index 0 hand.  This causes Index 1 objects to exactly copy the movement of Index 0 objects instead of having their own independent movement.

An example of this in my full body avatar is that if the right arm is lifted up, the other arm lifts up too so that both arms are raised in the air, even though it was only meant that one arm should be raised.

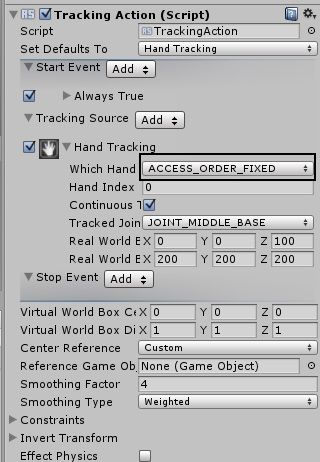

I also recommend setting the Which Hand option to the "Access Order Fixed" option for better two-handed control, as shown in the image above.  This should help to make sure that Index 0 objects are controlled only by Index 0 and Index 1 objects are controlled only by Index 1.

If you use the default option, "Access Order Near To Far", then the camera will try to make the hand that is nearest to it the active one instead of both hands being active at the same time.


Another way in which you can make two handed control more stable is to set the Start Event of the Index 0 TrackingActions to 'Always True' and set the Index 1 TrackingActions to have a Start Event of 'Two Hands Detected'.  This makes the camera less likely to get confused about which hand should be active.

The reason  for this is that if Index 1 (the second hand) is set to Two Hands Detected, the camera knows that it is impossible for the second hand to be active unless both hands are visible.  It will therefore control the Index 0 objects with either the left or right hand until it sees the second hand appear.  It will then control Index 0 objects with one hand and Index 1 objects with the other hand.

When the second hand is no longer visible to the camera then it will regard the Two Hands Detected condition to be "lost" and revert to moving only the Index 0 objects until the second hand is visible again.

When Two Hands Detected is used, the camera also seems to be more forgiving of one hand being behind the other and is less likely to lose tracking and stall the movement of the Index 1 objects.


Yet another technique for effective two handed control is what I call Air Drumming.  When the camera loses tracking of an object, it takes a few seconds before Unity catches up with the loss and stops moving the object.  You can therefore maintain continuous tracking of both hands by "drumming the air" as you move your hands.

What I mean by this is that you move your hands forwards and backwards in the air, so that the right hand is in front of the left hand, then the left hand is in front of the right, and then the right is in front again.  By doing this, you are continuously swapping which hand is the active one, and so movement does not stall: because of the time delay of a few seconds that it takes before Unity stops moving an object, the drumming is always re-activating tracking of a particular hand before it has time to stall.













3.另一種方式可以讓雙手控制更穩定是設置啟動事件的指數0 TrackingActions為“總是正確的”,並設置指標1 TrackingActions擁有的“兩隻手檢測”一開始事件。這使得相機不容易弄不清楚哪一只手應該是積極的。









I do not know how to ask you, I am only the hand, you said before that I would hook up, this is my now, and move my right hand, left hand is also moving

Honored Contributor III

Your arms look really good!  Congratulations!   :)

I would check that the TrackingActions of your left hand are all using Index 1 and not Index 0.  This is a mistake that I have made myself sometimes. It is easy to overlook when you have a lot of things to think about.

Also make sure that you do NOT have the Continuous box ticked on your Index 1 objects.


你的手臂看起來真的很不錯!恭喜! :)




A left-handed setting, a setting is right, but they still affect each other, you help me find what was wrong?

Honored Contributor III

Thank you very much for the TrackingAction images. That helps me a lot.  Your settings are almost correct.  However, you should do two more things:

1.  Remove the 'Hand Lost' setting from the Stop section of both hands.  You do not need it, as movement of the hands will stop anyway when your real life hands go outside of the camera's view.

2.  I think the main problem is that you are using the settings 'Left Hand' and 'Right Hand' for the Which Hand setting.  If you use this arrangement with a two-handed avatar then one hand can indeed affect the other.  I tested this with my own avatar and confirmed that this is still the case.

What you should do is change both hands to 'Access Order Fixed'.  Also make this change for your avatar's arm joints if they are able to move with TrackingActions.


You will notice that in my Real World Box settings, I am using different values from yours (100 for Center and 200, 200, 200).  You do not need to copy this into your own TrackingActions if you do not want to.  This is an experimental system I am using, as I found that the arm movement seems to stall a lot less if you double the default values to - I guess - double the width of how far the camera will let you move your hands away from its centre before tracking is lost.

You will also see that I am using values of '1, 1, 1' for my Virtual World Box.  Again, this is my personal preference and you do not have to use it yourself.  I just find that with a value of '1', the arm does not spring backward behind the avatar when the hand is detected.  Your arms may work just fine with the '0.1' setting you are using.

If you have changed the Which Hand setting to 'Fixed ID' and the hands are still not moving right, I would check the object child link hierarchy of your arms.  The linkage of the two arms should be totally separate.  If you have accidentally linked a part of one arm to a part of another arm then when one arm moves, it will make the other arm move with it.  It is an easy mistake to make and I have done it myself a number of times.


I do not understand your reply to the message, you can make a DeMo send me through? Or I put my project to you. I now no way, thank you

Honored Contributor III

Let us take it one step at a time.  First, please try changing your 'Access Order Left Hand' and 'Access Order Right Hand' settings so that both TrackingActions say 'Access Order Fixed''.
