Arria 10 and Eye Viewer Support (Transceiver Toolkit)

ibrahimburakyurtalan
Beginner
‎01-07-2025 11:48 PM
658 Views

Hi,



FPGA: Arria 10 10AX066K1F35I1HG

Software: Quartus Prime Standard 20.1



We would like to see and check the eye diagram of our display port inputs that are connected to transceivers.

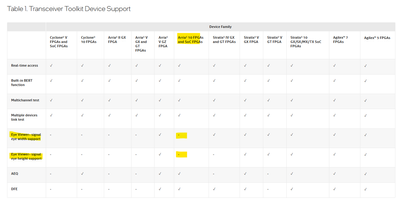

We've assumed that the transceiver toolkit (eye viewer) may help us in this manner but the table which is given in the below link says that Arria 10 FPGAs are not supported.

Quartus® Prime Software Features Transceiver Toolkit



So, is there any way to see the eye diagram of our transceiver input ?

Maybe using another quartus version/type, or another software, etc..



Thank you in advance for your help.





0 Kudos

Link Copied

1 Reply
Wincent_Altera
Employee
‎03-23-2025 07:19 PM
457 Views

Hi,

If you check TTK supported website for Altera FPGA, the eye viewer is not supported for Arria 10 device.
https://www.intel.com/content/www/us/en/software/programmable/quartus-prime/transceiver-toolkit.html


Alternatively, I suggest you to use BER features in the Transceiver Toolkit to fine tune your design PMA setting.

Regards,
Wincent



0 Kudos
Copy link
Reply
